Hyperspectral Imaging Systems

Line-scan and airborne hyperspectral cameras spanning 400 to 5300 nm, with the processing platforms and turnkey systems that make spectral data actionable in the lab, the field and the air.

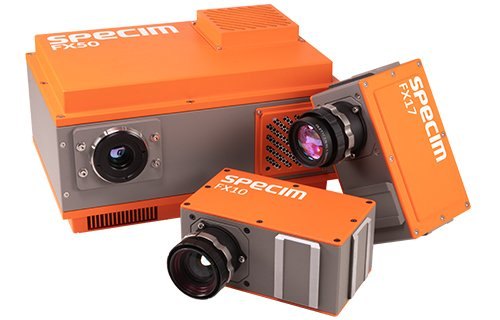

Specim FX Series Hyperspectral Cameras

High-performance line-scan hyperspectral cameras for industrial and research applications. Available in VNIR (FX10: 400-1000 nm) and NIR (FX17: 900-1700 nm) variants. Enables real-time, in-line optical inspection with near 100% accuracy.

Spectral Range: FX10: 400-1000 nm, FX17: 900-1700 nm
Spatial Pixels: 1024 (FX10), 640 (FX17)
Spectral Bands: 224 each

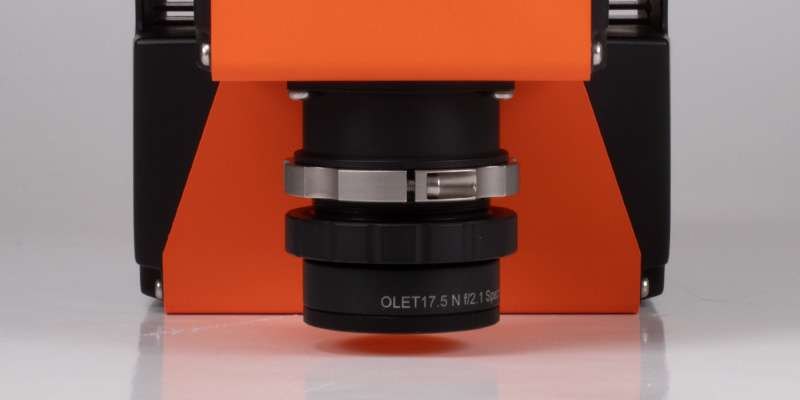

Specim AFX Series UAV Hyperspectral Systems

Complete airborne hyperspectral systems designed for UAV integration. Features integrated GNSS/IMU for precise georeferencing and multiple drone mounting options.

Spectral Range: AFX10: 400-1000 nm, AFX17: 900-1700 nm
Spatial Pixels: 1024 (AFX10), 640 (AFX17)
Spectral Bands: 224

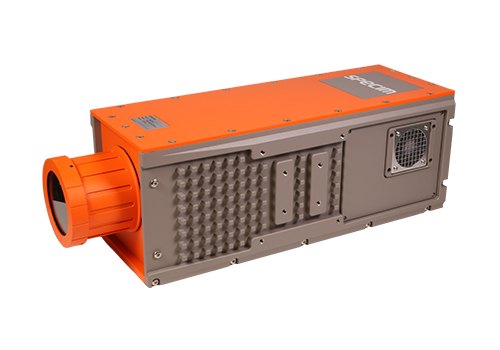

Specim SWIR Hyperspectral Camera

A high-performance shortwave infrared (SWIR) hyperspectral camera covering the 1000-2500 nm spectral range. Suitable for mineral exploration, food quality control, and material identification.

Spectral Range: 1000-2500 nm
Spatial Pixels: 384
Spectral Bands: 288

Specim FX50 MWIR Hyperspectral Camera

A mid-wave infrared (MWIR) hyperspectral camera for thermal imaging applications. Covers the 2700-5300 nm range for advanced material identification and thermal analysis.

Spectral Range: 2700-5300 nm
Spatial Pixels: 640
Spectral Bands: 154

Resonon Outdoor Hyperspectral System

Complete outdoor hyperspectral imaging system designed for field measurements. Includes rotational scanning stage, tripod, Spectronon software, and radiometric calibration.

Components: Rotational scanning stage, tripod, calibration target
Software: Spectronon for data acquisition and analysis
Features: Rugged laptop option with anti-glare screen for sunny conditions

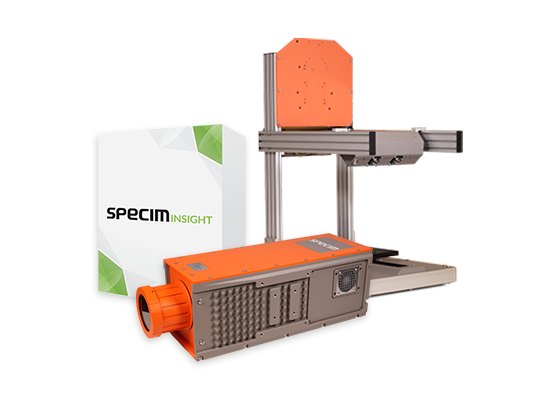

SpecimONE Spectral Imaging Platform

A comprehensive platform for industrial sorting and inspection applications. Combines hyperspectral camera (Specim FX), processing hardware (SpecimCUBE), and software (SpecimINSIGHT). No coding required.

Compatibility: Major industrial machine vision standards
Processing: Real-time classification models
Integration: Easy system integration with flexible configurations

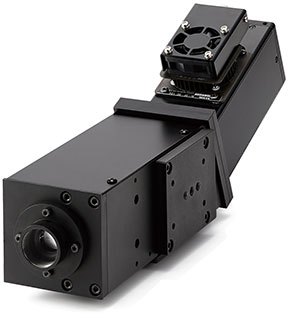

AHS-U20MIR Hyperspectral Imaging Camera

A SWIR hyperspectral camera covering 1300-2150 nm with 96 spectral bands. Features InGaAs sensor with two-stage electronic cooling.

Spectral Wavelength: 1300-2150 nm
Image Sensor: InGaAs sensor, 192 H × 96 V pixels
Wavelength Resolution: 9.6 nm

Clyde HSI Desktop Hyperspectral Scanner

Complete integrated desktop hyperspectral system including all power supplies for camera, scanner, and lighting control. Fits on a standard laboratory bench.

Application Areas: Agri-food, materials identification, art conservation, forensics, medical, chemical imaging, recycling
Features: Complete turnkey system with software
Power: Integrated power supplies

Camlin Photonics Modular Spectroscopy Instruments

Comprehensive range of modular spectroscopy instruments including light sources, monochromators, spectrographs, and detectors. Available with USB2.0/3.0, CameraLink, and GigE interfaces.

Spectral Options: NUV (350-800 nm), VNIR (400-1000 nm), NIR (900-1700 nm), SWIR (900-2500 nm)
Spectral Resolution: 2 nm (VNIR) to 6 nm (SWIR)
Light Sources: Xenon, tungsten, deuterium

REMIX Real-Time Hyperspectral Processing Payload

A real-time hyperspectral processing payload for small UAVs. Features a custom software library, lightweight hyperspectral camera, and embedded processing device.

Processing Speed: <5 ms per hyperspectral line
Flight Time Impact: Only 4% degradation
Speed Improvement: Up to 6× faster than naive payloads

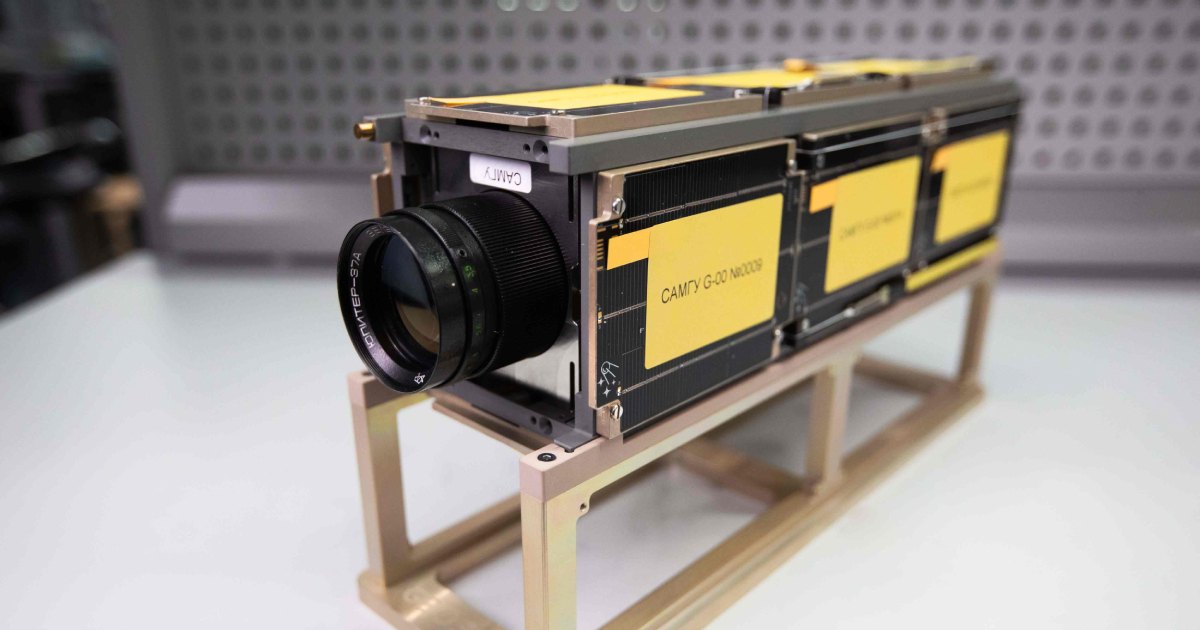

HyperSCAN CubeSat Hyperspectral Imager

A compact, lightweight, low-cost hyperspectral imager designed for CubeSat platforms. Features modular design with commercial off-the-shelf (COTS) optical components.

Design: Modular, compact, lightweight
Construction: COTS optical components
Feature: Folding mirror for reduced optical path

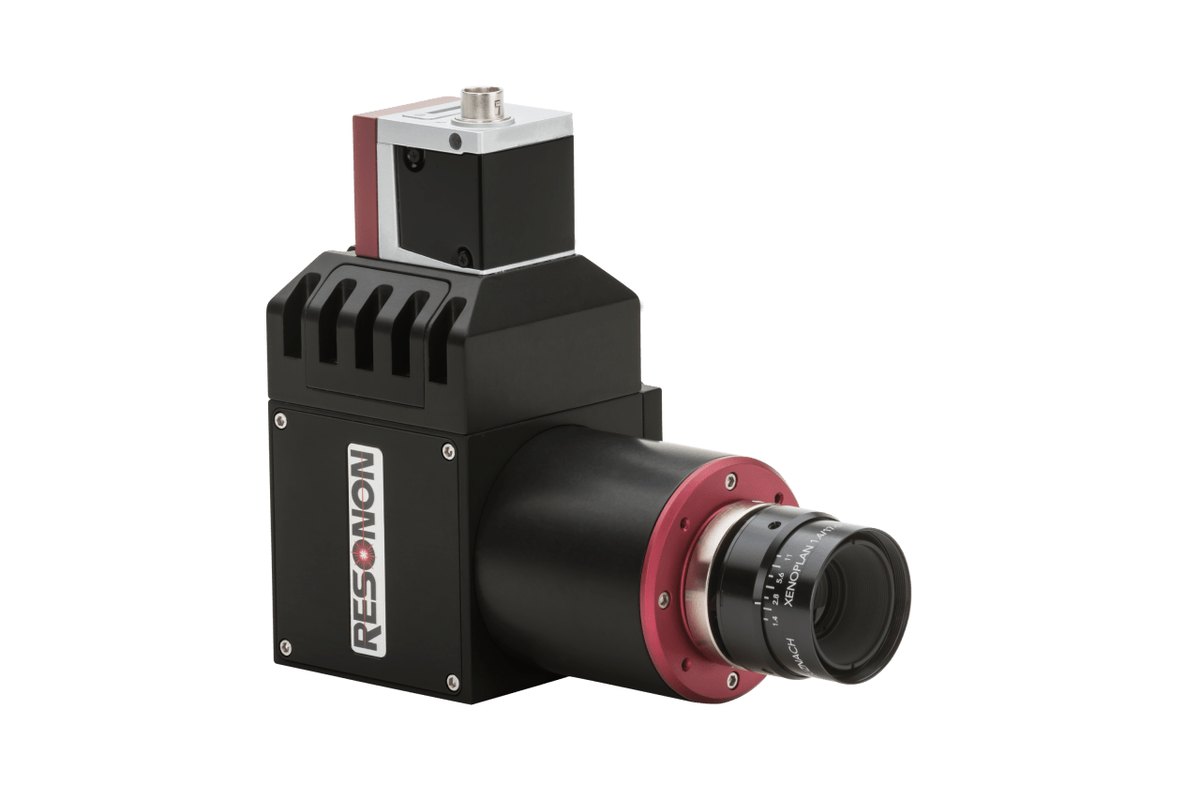

Pika L & Pika IR+ Hyperspectral Imaging Systems

High-performance hyperspectral imaging systems from Resonon with comprehensive spectral coverage from visible to shortwave infrared.

Pika L Range: 400-1000 nm, 300 spectral channels, 2.7 nm resolution
Pika IR+ Range: 900-1700 nm, 368 spectral channels, 5.6 nm resolution
Spatial Pixels: 900 (Pika L), 640 (Pika IR+)
